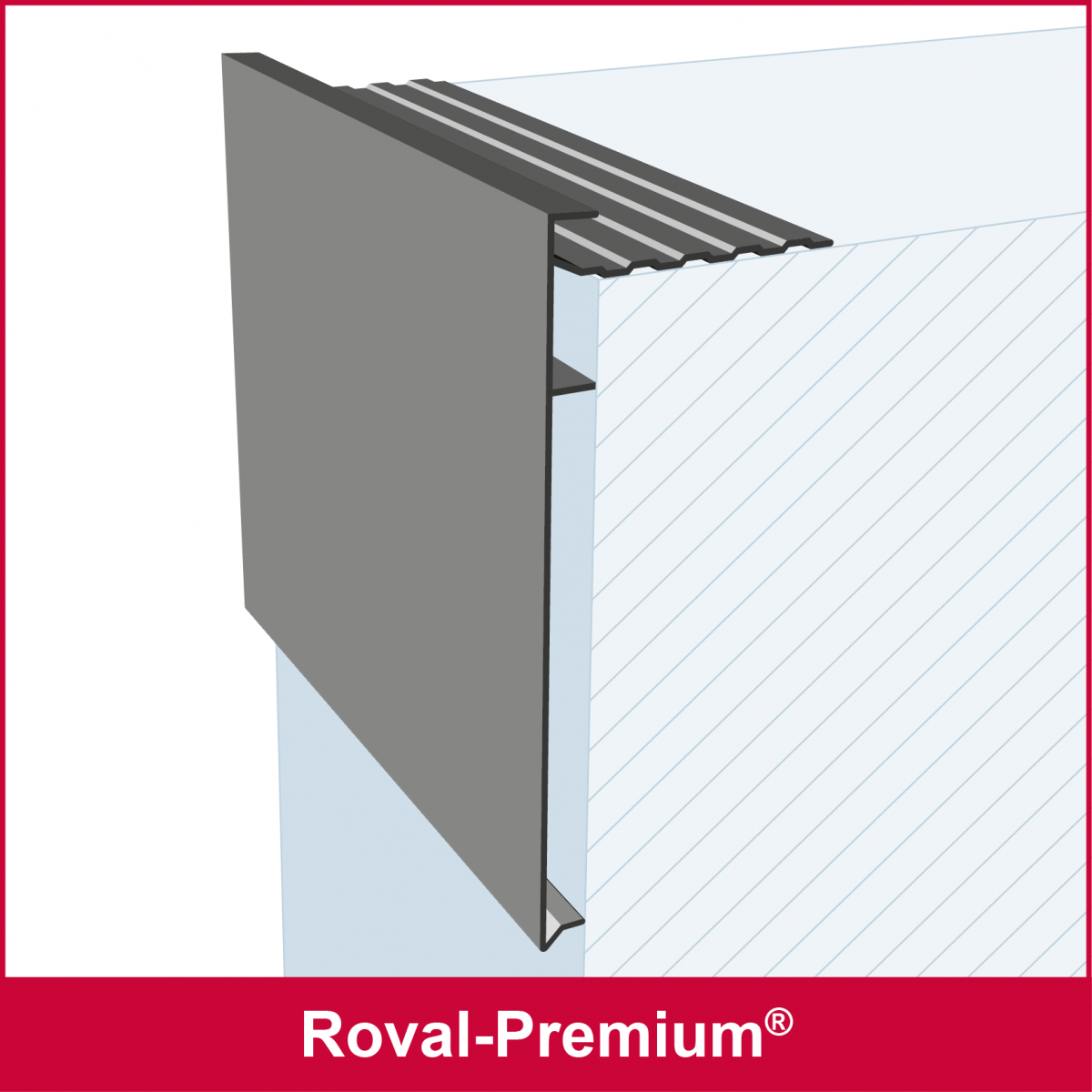

Roval-Premium®
A roof edge that combines durability with an attractive finish. An extra thick aluminium profile that provides more sturdiness. The double rebate ensures better positioning. The ascending support reduces the risk of leak marks.
Screw holes are provided as standard. In lengths from 2500 mm.
Item overview
Click on one of the types below for technical drawings and specifications
| CAD | Specification | Profile height | Profile width | ||
|---|---|---|---|---|---|
|
145400
|
- | 45 mm | 45 mm | |
|
145425
|
- | 60 mm | 45 mm | |
|
145450
|
- | 60 mm | 60 mm | |
|
145475
|
- | 80 mm | 60 mm | |
|
145490
|
- | 110 mm | 60 mm | |
|
145650
|
- | 150 mm | 60 mm | |
|
145655
|
- | 200 mm | 60 mm | |
|
145660
|
- | 250 mm | 60 mm | |
View our product warranty terms here
Screw holes are provided as standard. In lengths from 2500 mm.
Components:
External angle
- Welded corner piece 90º
- Standard size 500 x 500 mm.
145650, 145655 en 145660: Standard size 250 x 250 mm. - Non-standard sizes possible.
Internal angle
- Welded corner piece 90º
- Standard size 500 x 500 mm.
145650, 145655 en 145660: Standard size 250 x 250 mm. - Non-standard sizes possible.
Connecting plates / Internal connecting plates
- These are slid into the profile
