Roval-Standard

Aluminium roof edge profile suitable for new building and renovation. Available in brute, enamelled and anodized versions. In lengths from 2500 mm. For the 60 x 64 mm and 80 x 64 mm roof edges, a number of RAL colours are available from stock.

Item overview

Click on one of the types below for technical drawings and specifications

	Specification	Profile height	Profile width
151619	-	30 mm	28/18 mm
151330	-	35 mm	28/18 mm
151347	-	35 mm	35/25 mm
151253	-	35 mm	45/35 mm
151254	-	35 mm	95/85 mm
151539	-	38 mm	30/20 mm
151660	-	45 mm	45/35 mm
151628	-	45 mm	64/54 mm
151386	-	60 mm	45/35 mm
151255	-	60 mm	64/54 mm
151349	-	60 mm	85/75 mm
151353	-	70 mm	105/95 mm
151629	-	80 mm	64/54 mm
151810	-	80 mm	90/79 mm
151675	-	90 mm	64/54 mm
151350	-	110 mm	64/54 mm

View our product warranty terms here

Components:

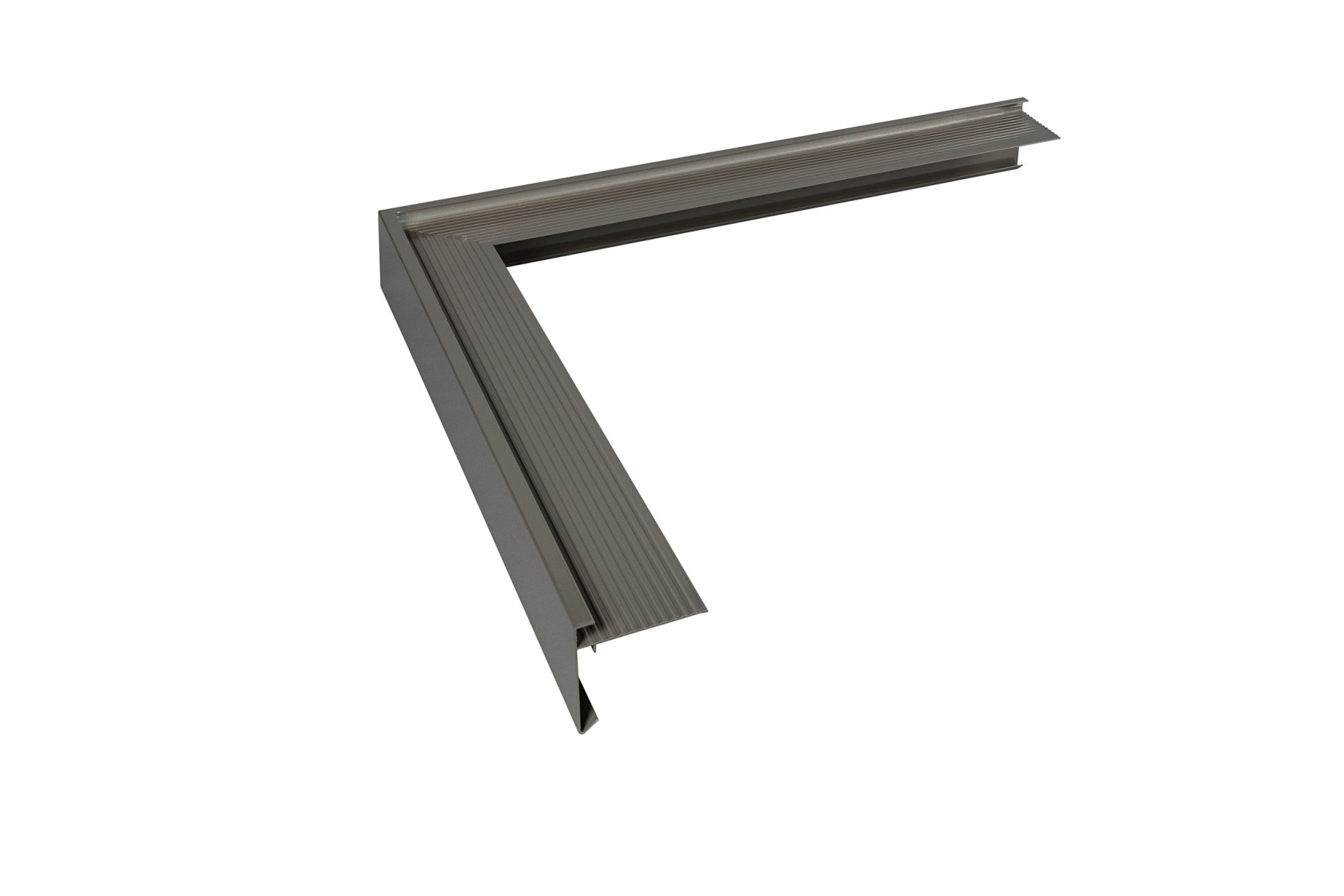

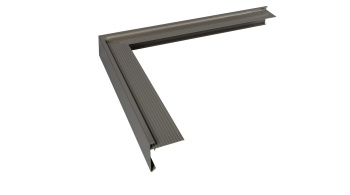

External angle
		Welded corner piece 90º Standard size 500 x 500 mm. Non-standard sizes possible.

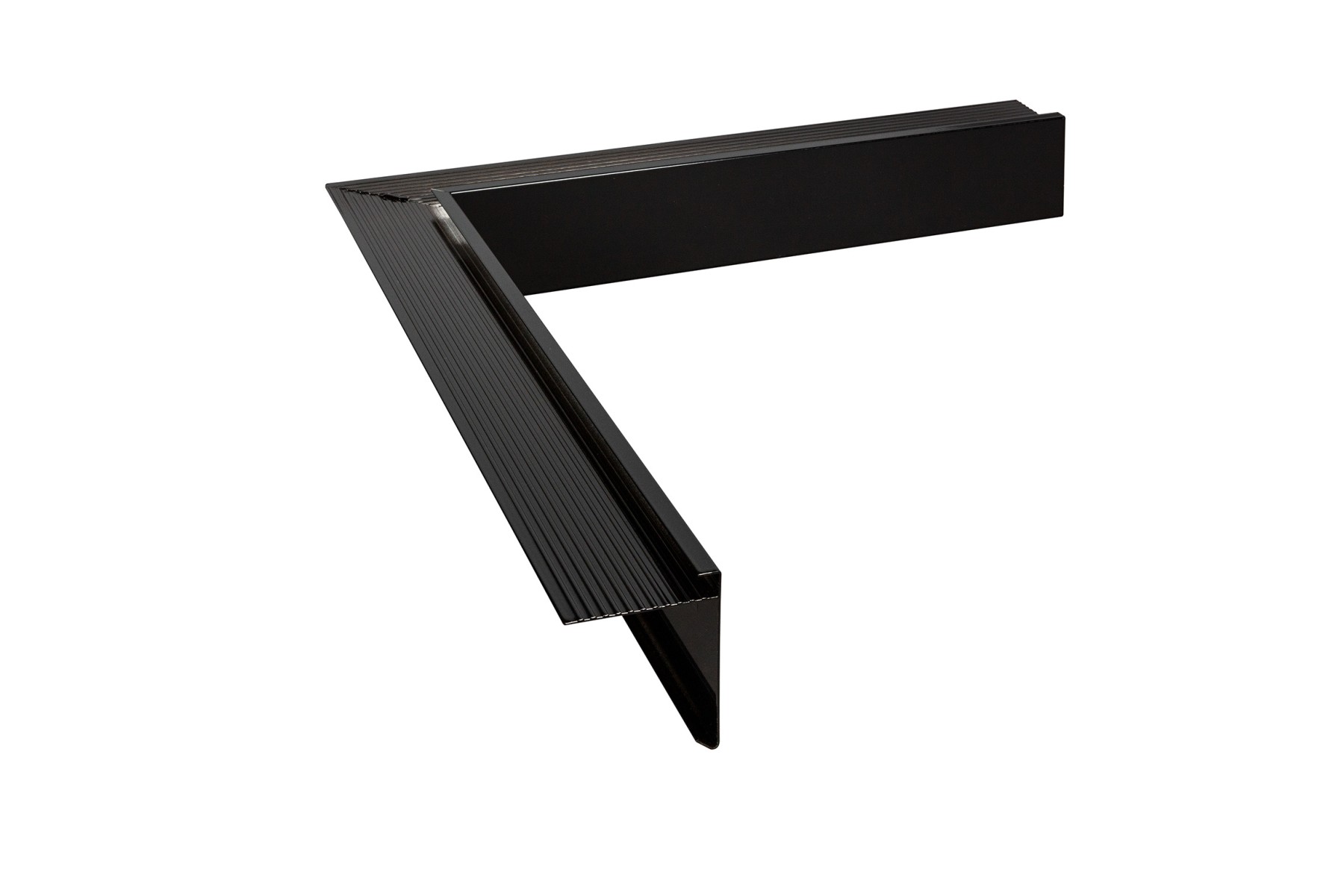

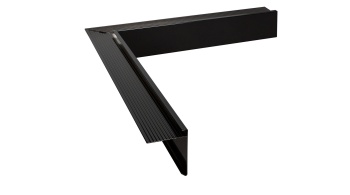

Internal angle
		Welded corner piece 90º Standard size 500 x 500 mm. Non-standard sizes possible.

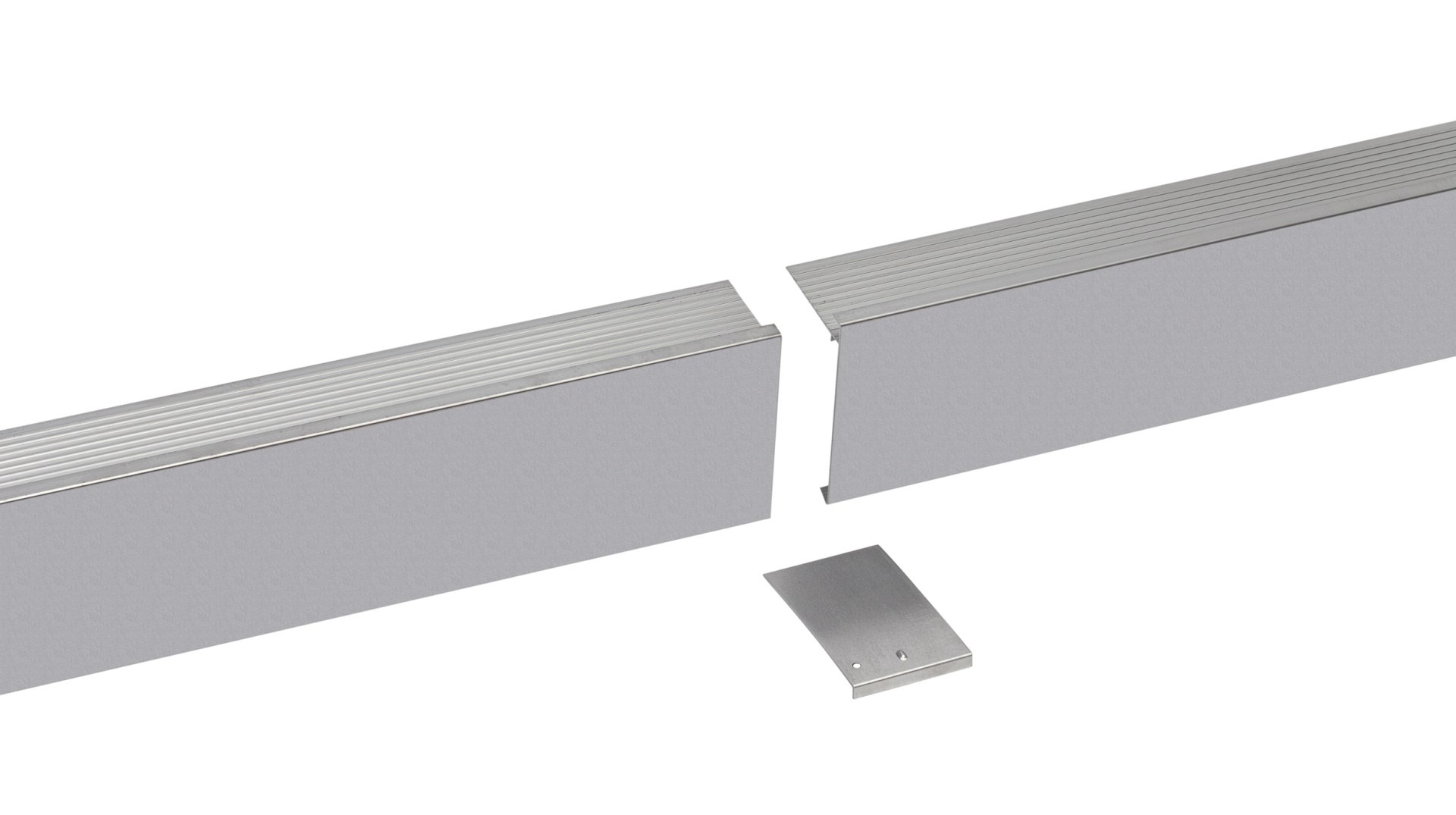

Connecting plate
